What is a dieline? The complete guide (with examples)

What a dieline actually is

A dieline (sometimes written "die line" or "die-line") is a vector template that defines the finished shape and folding pattern of a package while it's still flat. Think of it as the sewing pattern for a piece of packaging: it tells the converter — the company that manufactures your package — precisely where to cut the outline, where to score the material so it folds cleanly, where to add glue, and where to punch holes or perforations.

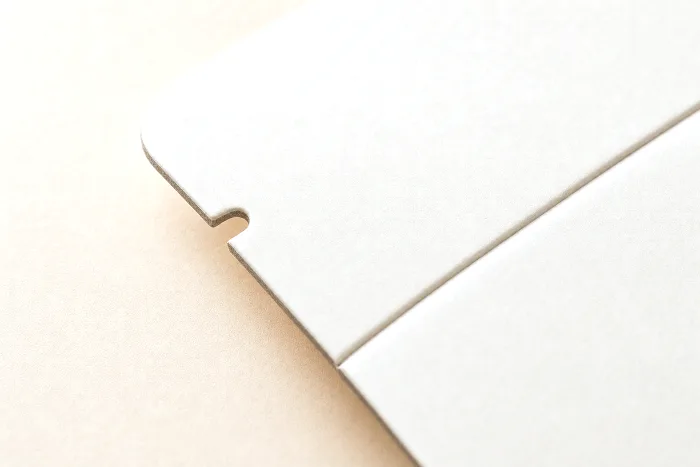

The name comes from the die: a custom steel tool, embedded with sharp blades and blunt scoring rules, that stamps the flat material into shape, much like a cookie cutter. The dieline is the digital drawing that the physical die is built from. Get the dieline right and everything downstream — the printed artwork, the 3D proof, the pallet and freight math — lines up. Get it wrong and the package won't fold, won't seal, or won't fit its contents.

The anatomy of a dieline: line types explained

Dielines use a small, common vocabulary of line types; exact colors and line styles vary by converter and CAD system, so check your converter's template. Converters expect these conventions, and mixing them up is one of the most common reasons a file gets bounced. Here's what each line means.

Line type	Appearance	What it does
Cut	Solid line	The material is cut completely through. This is the finished outline of the package.
Crease / score	Dashed line	The material is scored so it folds cleanly along that line without cracking. Not cut through.
Perforation	Dash-dot line	A series of small cuts that let the material be torn by hand — tear strips, coupons, easy-open features.
Bleed	Outer boundary	The area artwork extends into beyond the cut line — usually 3 mm (0.125 in) — so cutting never leaves a white edge.
Safety / margin	Inner boundary	The keep-clear zone inside the cut where text and logos must stay so they aren't trimmed off.
Glue / seal	Shaded area	Where panels are bonded — the glue tab on a carton, the seal weld on a pouch.

On a properly built file these live on their own named layers or spot-color separations, so the die-maker can isolate the cut path from the artwork. This is exactly what modern preflight tools check for — see our guide to the packaging preflight checklist.

Bleed and safety: the two margins that trip everyone up

The single most common dieline mistake is misunderstanding bleed and safety. They work as a pair:

• Bleed extends artwork outward, past the cut line, so that mechanical tolerances in cutting never expose the unprinted substrate. Without bleed, a hair of misalignment shows as a thin white sliver along the edge. Standard bleed is 3 mm, though some flexible-packaging and label processes want more.
• Safety pulls critical content inward, away from the cut line. Because folding and cutting both carry small tolerances, anything closer than roughly 3 mm to a cut or fold risks being trimmed or landing on a crease. Keep barcodes, legal copy, and logos inside the safety margin.

A simple way to remember it: background bleeds out, important content stays in.

How a dieline becomes a package

The journey from flat file to shelf-ready package follows a predictable path:

1. Design. A structural designer creates the dieline to fit the product's dimensions, the material, and the manufacturing method. This is a parametric decision — change the width and the seams, panels, and glue tabs all have to move with it.
2. Artwork. A graphic designer places the brand artwork onto the dieline's panels, respecting bleed and safety, so the printed design maps to the finished folds.
3. Preflight & proof. The combined file is checked for print-readiness and rendered as a proof — a flat mock-up or a photoreal 3D model — for approval.
4. Die-making. The converter builds the physical die from the dieline's cut and crease paths.
5. Print & convert. The material is printed, then die-cut, folded, and glued or sealed into the finished package.

Because every stage inherits the dieline, an error at step one propagates all the way to the press. That's why measuring the real dimensions off the dieline accurately is the foundation of getting a correct quote.

Dielines by package type

Different structures have very different dielines. A few of the most common:

• Folding cartons — the classic "unfolded box" shape, with a glue tab, dust flaps, and tuck or auto-bottom closures. Tuck-end and straight-tuck cartons are everyday retail packaging.
• Stand-up pouches — a flexible dieline defined by seal welds rather than cut panels, with a bottom (Doyen) gusset, side seals, an optional press-to-close zipper, tear notch, and hang hole. See our stand-up pouch spec guide.
• Labels — the simplest dieline: the cut shape of the label repeated across a printed web, with eyemarks for registration.
• Corrugated shippers — the RSC and its variants, scored into panels that fold into a box with slotted flaps.

Common dieline mistakes (and how to avoid them)

Mistake	Why it fails	Fix
No bleed	White slivers appear at cut edges	Extend background art ~3 mm past the cut
Text in the safety zone	Copy gets trimmed or folded through	Keep content ~3 mm inside the cut
Cut and crease on one layer	The die-maker can't separate the tool paths	Put cut, crease, and bleed on named layers or spot separations
Artwork not aligned to the die	Printed design lands on the wrong panels	Build artwork on top of the supplied dieline, locked
Rasterized (flattened) dieline	The cut path can't be extracted for tooling	Keep the dieline as editable vectors

Dielines and quoting

Everything in a package's cost follows from its dieline: once the structure is understood, the material area, the print, and the production route can all be calculated. So when you request a quote, give the supplier the dieline if you have one, or at least the artwork and the finished dimensions. PackOS Quick Quote reads roll-label artwork and detects the label's attributes; upload your label artwork to review them and confirm the selected specification. PackOS does not rebuild or quote cartons, pouches or other structures.
