Label Flagging: Edge Lift, Curves & Seam Overlap
Edge lift is a symptom to investigate. On a curved container, the label construction, contact surfaces, seam design and application process all belong in the review.
THE SHORT ANSWER

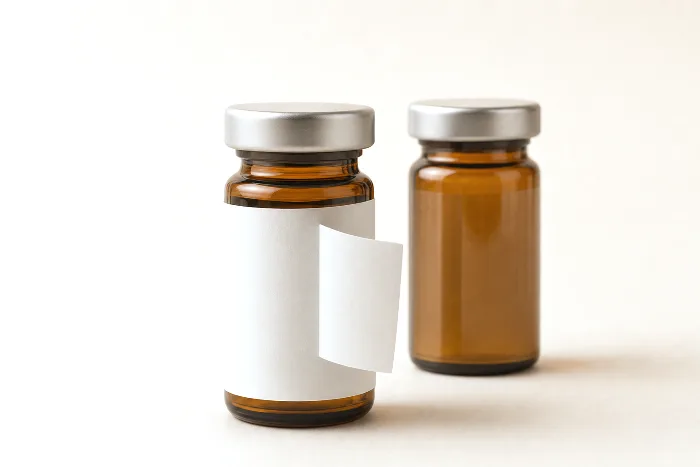

Label flagging means a label edge lifts away from the container. Curvature and the finished label’s resistance to bending can contribute, but appearance alone cannot identify the cause. Measure the actual label zone, check where each edge lands, and trial the proposed construction and process before changing an enterprise label specification.
Describe the lifted edge precisely
Record which edge lifts, where on the container it occurs, and when it first becomes visible. A leading edge, trailing edge, top edge and bottom edge can have different contact conditions. Photograph an affected unit before pressing it back down, and retain the label and container lot references.
“Flagging” describes the raised edge; it does not prove that the face stock is too stiff or the adhesive is wrong. For a broader failure record, use the label adhesion investigation guide. For raised areas within the face, start with bubbles and peeling.
Review the construction, surface and process together
| Question | Evidence to collect |
|---|---|
| Does the finished construction suit this curve? | Exact face, adhesive, ink and finish references; supplier guidance and representative samples. |
| What does the lifting edge contact? | Bare container, printed label face, coating or another surface; record the actual seam layout. |
| Is the label zone cylindrical? | Diameter or circumference at several heights, shoulders, taper, ribs, seams and local surface features. |
| How is the label applied? | Equipment, placement, wipe-down settings and observed stretch or skew, within the approved operating procedure. |
| What changes before lifting? | Conditioning interval, filling, storage, product contact, temperature and handling sequence. |
HERMA’s curved-surface guidance treats label flexibility and adhesive performance as related requirements. Avery Dennison’s neck-label guide also discusses multiple contributors, including material behavior and adhesive selection. Neither supports diagnosing every lifted edge from a single photograph. HERMA curved-surface labeling · Avery Dennison neck-label guide
Check the seam before changing the material
Identify whether the artwork calls for a partial wrap, an intentional gap, a butt seam or an overlap. Overlap is not a universal requirement. Where the label does overlap, the trailing adhesive contacts the finished label face rather than the bare container. Ask the supplier to confirm compatibility with that actual printed or coated surface.
Do not add width simply to hide a lifted edge. Extra overlap can cover artwork, codes or required information, and may change the application setup. Agree the minimum and maximum acceptable seam dimensions with the converter and applicator operator. Keep the seam zone and placement requirement on the approved drawing.
For a straight circular cylinder, circumference is π × diameter. Use the label size calculator for nominal geometry, then include the actual manufacturing variation and a physical fit check. The calculation does not apply unchanged to a tapered, oval or compound-curved label zone.
Worked example: calculate a range for overlap
There is no universal minimum container diameter or overlap that prevents flagging. The following hypothetical example shows why one nominal number is incomplete. It assumes a straight circular cylinder and a rectangular label placed level, without stretch. It excludes label thickness, taper, ovality and application variation.
Suppose the actual label-zone diameter is specified as 30.0 ± 0.2 mm and the label width around the wrap as 96.0 ± 0.2 mm. Nominal overlap is 96.0 − π × 30.0, or about 1.75 mm. The limiting combinations give a wider range:
| Calculation | Result |
|---|---|
| Minimum: narrowest label − largest circumference | 95.8 − π × 30.2 ≈ 0.92 mm |
| Maximum: widest label − smallest circumference | 96.2 − π × 29.8 ≈ 2.58 mm |
In general, minimum overlap = minimum label width − π × maximum diameter; maximum overlap = maximum label width − π × minimum diameter. A negative result indicates a geometric gap in this model. Use consistent units and the width in the wrap direction.
A positive result is not proof of adhesion or line readiness. If the calculated range falls outside the agreed seam limits, review the design, tolerances and application assumptions with the supplier. Do not silently replace measured variation with a nominal container size.
Use comparisons to narrow the cause
A hand-applied sample and a machine-applied sample can help investigate a process difference. They do not, by themselves, prove that one party is at fault. The samples may differ in pressure, placement, surface condition, conditioning or inspection time.
Keep container lot, label lot, construction, fill state and exposure sequence comparable. Change one planned factor at a time where practical, and document anything that could not be controlled. Agree the sample count, observation intervals and acceptance criteria before the trial. The material guide and adhesive guide help frame supplier questions.
For an overlap trial, include the actual finish at the overlap and the intended coding/artwork clearance. For an intentional gap, evaluate both exposed edges. Record edge lift and appearance separately from dispensing behavior.
Give the supplier a curved-container trial brief
Send a dimensioned label-zone drawing, the container supplier item and lot, actual measurements, seam target and allowable range, label construction and artwork revision, application record, and labeled photographs of failures and comparisons. State the number inspected and observation times. Preserve samples before experimenting with cleaning or heating.
Ask which construction and surface combination the supplier supports and which proposed changes need new qualification. Cleaning, warming and machine adjustments must follow approved product and equipment procedures; a generic troubleshooting article cannot set them.
Download the construction trial worksheet (CSV)
Use the construction worksheet instructions to keep conditions, results and approval ownership together. Record the seam drawing and calculations alongside that worksheet. An untested alternative remains a proposal.
Carry seam approval into the label order
For multi-SKU programs, group products only when the container geometry, surface, construction and use conditions support the same qualification. A shared bottle capacity or artwork template does not establish equivalent fit. Revisit approval if the container supplier, finish, label size or application process changes.
Start a custom roll-label order with artwork and quantities by SKU. In packOS, review detected attributes and available specification choices, and keep container and seam requirements with the request. Confirm any requirement outside the quote options with the team.
Frequently asked questions
What is label flagging?
Label flagging is a label edge lifting away from the container. Record its location and when it appears. Curvature, finished construction, contact surfaces and application conditions may contribute; the symptom alone does not establish a root cause.
Do wrap labels always need to overlap?
No. A design may use a partial wrap, an intentional gap, a butt seam or an overlap. Confirm the intended seam and acceptable dimensions with the converter and applicator operator. If the label overlaps, qualify adhesion to the actual finished label face.
How do I calculate label overlap on a cylindrical bottle?
For an ideal straight circular cylinder, subtract pi times the diameter from the label width in the wrap direction. Use consistent units. Include width and diameter variation to calculate a range, then check real samples. Taper, ovality, stretch and skew require additional review.
What is the smallest diameter that can be labeled?
There is no universal diameter limit for all label constructions. Give the supplier the actual geometry, surface, finish and service requirements, then trial the proposed construction. A material that works on one container is not automatically qualified on a smaller one.
Will a stronger adhesive stop label flagging?
It may be one candidate change, but it is not a universal fix. Review construction flexibility, contact surfaces, seam geometry and application conditions together. Qualify the proposed adhesive within the complete printed and finished construction.
Can I add overlap without changing anything else?
Do not assume that. Extra width can cover artwork or codes and change the application setup. It also changes which surfaces contact at the seam. Review the drawing, allowable seam range, finished-face compatibility and representative trial before release.
Does a successful hand-applied label prove the production line is at fault?
No. It is evidence from one set of conditions. Compare samples with controlled container and label lots, placement, pressure, conditioning and exposure, and document differences. Responsibility requires a reviewed investigation rather than one pass or failure.
What should I send a supplier about lifted label edges?
Send the container and label references, dimensioned label zone, seam specification, construction and artwork revision, application and exposure records, sample counts, observation times and photographs. Preserve failed and comparison samples and identify open questions.
