Label Artwork Setup: Dielines, Bleed & Safe Areas
Build your label artwork around the approved cut shape. Keep bleed, safe areas and print separations distinct, then carry the right file revision into your quote and production proof.
THE SHORT ANSWER
Use the supplier’s approved dieline and artwork requirements. The cut line defines the finished label; bleed extends background art beyond it; important content stays inside the safe-area boundary. Confirm the actual allowances, white-ink plan and export settings before releasing each SKU.
Start with the production specification
A label file can look complete while leaving production questions unanswered. Which container and cut shape were approved? Which artwork revision belongs to each SKU? Is the clear area intentionally transparent? Who approves the supplier’s final proof?
Before laying out artwork, collect the container reference, finished dimensions, supplier template revision, material and finish, print method and application requirements. The label size and measuring guide helps separate the container measurements from the artwork canvas. The label printing guide connects that specification to the production process.
Keep the label cut path separate from print artwork

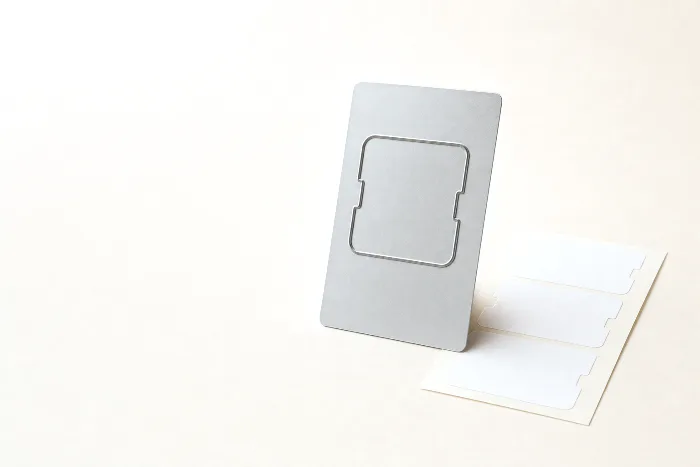

The dieline identifies the intended cut geometry. For a simple label it is often one closed contour; constructions with perforations, multiple components or other operations need those instructions identified separately. Use the approved template rather than redrawing its outline from a screenshot.
- Preserve finished dimensions and shape. Record width × height, units, shape and corner radius. Do not silently round corners or resize an approved die.
- Follow the supplier’s layer and naming convention. Confirm how the cut contour and other manufacturing instructions should be supplied, including spot names and overprint settings. Some upload services ask for artwork without visible template outlines.
- Keep instructions out of printed artwork. Inspect the exported file so the cut guide cannot accidentally become a printed border.
- Keep component identities explicit. Front/back labels, peel-and-reveal layers and tamper components need their own approved geometry and artwork references.
See the label cutting and finished-format guide for the difference between the label contour, backing and delivered format.
Label bleed, trim and safe area: what each means
Bleed is extra background artwork outside the finished cut. The safe-area boundary sits inside the cut; keep critical content farther inward than that boundary. Neither changes the ordered finished label size.
There is no single allowance for every label service. For example, Avery’s artwork guidelines specify 1/16 inch outside and inside the trim. OnlineLabels’ Canva setup instructions distinguish 1/8 inch for custom sheets from 1/16 inch for custom rolls. These are examples of those services’ requirements, not packOS defaults. Obtain the current template for the actual order.
| Boundary | What it controls | What to confirm |
|---|---|---|
| Cut / trim line | Finished label size and shape | Approved dieline revision and dimensional tolerance |
| Bleed boundary | Extent of background art beyond the cut | Required allowance on every edge |
| Safe-area boundary | Inset limit for critical content | Text, logo, border and code placement |
| Barcode quiet zone | Clear space required by the selected code | Symbol-specific size and print verification requirements; do not substitute the general safe area |
Worked example: a 3 × 2 inch label
Suppose the approved rectangular label is 3 × 2 in, with a specified 0.125 in bleed on every side and a separate 0.125 in safe inset. This is an arithmetic example, not a recommended production allowance.
- Finished cut: 3 × 2 in = 76.2 × 50.8 mm.
- Artwork including bleed: (3 + 2 × 0.125) × (2 + 2 × 0.125) = 3.25 × 2.25 in = 82.55 × 57.15 mm.
- Rectangular safe area: (3 − 2 × 0.125) × (2 − 2 × 0.125) = 2.75 × 1.75 in = 69.85 × 44.45 mm.
1/8 inch equals 3.175 mm; 1/16 inch equals 1.5875 mm. Do not silently replace either with a rounded metric allowance. For circles, shaped labels and rounded corners, follow the actual offset contour rather than using a rectangular safe box. The drawing’s approved tolerances govern production.
Plan white ink and intentional transparent areas
Choose the intended appearance before deciding where white ink belongs. A clear window, a metallic effect and an opaque color panel can require different treatment within the same design. Clear or metallized stock does not mean that every area must receive white.
Document which areas should remain transparent or metallic, and which need an opaque base. Ask the supplier to confirm the white separation, spot name, coverage, print sequence, trapping or choke and overprint/knockout settings. Do not use a generic “White” swatch name as proof that the file is correctly prepared for that workflow.
Avery, for example, publishes its own white-ink naming instructions and offers to prepare the underprint. Follow your supplier’s instructions and inspect the resulting separations and proof. A screen preview cannot establish the finished opacity or color on the selected substrate; request the appropriate physical sample or proof for the decision.
Check wrap seams and application orientation
A wrap can leave a gap or use an overlap. Record which one the design requires, its approved allowance and the visible seam location. With an overlap, identify the covered edge and keep critical copy and codes out of the covered region.
Use the worked wrap-width examples to distinguish circumference minus a gap from circumference plus an overlap. Confirm top and bottom placement against the real container, and use the unwind direction guide to record the leading artwork edge and printed-face orientation. A flat PDF does not prove fit or dispensing on the application line.
Review the file against the agreed requirements
Use a checklist tied to the supplier’s specification. An automated result can help locate issues; unresolved assumptions still need a person’s decision. The packaging preflight checklist provides broader context.
- Identity: correct SKU, component, language or market variant, revision and quantity schedule.
- Geometry: correct finished size, units, shape and approved cut-path revision; no accidental scaling.
- Edges: required bleed coverage and critical content inside the safe boundary, including curved corners and covered seams.
- Print content: legible type, suitable image resolution at final size, included graphics and fonts handled as requested.
- Separations: intended process and spot colors, white ink and finish plates; no unwanted manufacturing guides printing with the art.
- Codes: correct encoded data, sizing and quiet zones; arrange verification on the printed result where required.
- Approval: final proof associated with the exact artwork revision and approved by the designated owner.
Do not assume a file pass qualifies adhesive, material durability, color matching or machine application. Use the material qualification checklist and agree the necessary production trials separately.
Export the PDF your supplier requests
Ask for the required PDF preset or standard, output color condition, image settings and treatment of spot colors and manufacturing instructions. PDF/X-4 is an option in packaging workflows, but a PDF/X label alone is not acceptance for every process. ISO 19593-1 defines Processing Steps for packaging and labels, used to identify production content such as cut paths and white plates in a PDF; packaging-specific delivery specifications are set by each supplier.
After export, reopen the actual delivery file. Compare its dimensions, artwork, fonts, bleed and separations with the approved source and supplier requirements. Check that required white and finish plates survived and that cut instructions have the intended treatment. Keep the editable master and a record of the exported revision. Our packaging PDF guide is additional background; the receiving supplier’s written requirements control the release.
Prepare a label artwork handoff for packOS
Start a label quote with your artwork or enter known specifications manually. Review the returned measurements, assumptions and warnings against the approved drawing. Treat unresolved or uncertain results as review items; an upload does not approve the artwork for every press or replace the supplier’s production proof.
Multi-SKU artwork approval checklist
- SKU and component ID, artwork filename and revision.
- Container reference, approved dieline revision and finished dimensions.
- Material, finish, intended transparent areas and white-ink plan.
- Quantity by SKU, front/back counts and planned release dates.
- Copy position, roll requirements and application-line reference.
- Open questions, proof version, approval owner and approval date.
Keep the artwork list aligned with the label SKU schedule and supplier comparison worksheets. If a revision changes the cut shape, construction or appearance, identify the change before a repeat order is released.
Start a label quote or prepare the full specification with the enterprise roll-label buying guide.
Frequently asked questions
How much bleed does a label need?
Use the current supplier template for the specific label service. Published requirements differ, including 1/16 inch and 1/8 inch examples. The bleed extends beyond the cut on every required edge; it is not part of the finished label size.
What is the difference between bleed, trim and safe area?
Trim defines the finished cut. Bleed extends background artwork outside it. The safe-area boundary is inset from the cut; keep critical content inside that boundary, toward the center of the label.
What canvas size do I need for a 3 × 2 inch label?
With an explicitly specified 0.125 inch bleed on all four sides, the artwork extent is 3.25 × 2.25 inches. The finished label remains 3 × 2 inches. Use the actual supplier allowance instead of assuming this example applies.
Is 1/8 inch the same as 3 mm?
No. 1/8 inch is exactly 3.175 mm, and 1/16 inch is 1.5875 mm. Confirm which unit and allowance the approved drawing specifies.
Do all clear labels need white ink?
No. White ink is a design and production decision. Identify opaque areas, transparent windows and any metallic effects, then agree the white separation and proof with the supplier.
What corner radius should a die-cut label have?
Keep the radius and shape on the approved dieline. There is no universal radius for every label. Any proposed change needs review against fit, cutting and application requirements.
What file format should I send for label printing?
Use the receiving supplier’s required format and export settings. Confirm the PDF preset, color condition, fonts, bleed and spot-separation handling. Reopen the delivery file and inspect it before release.
Does automated label preflight approve production?
No. Review the reported measurements, assumptions and warnings. Production approval also depends on the agreed proof, material and application requirements; a file check alone cannot establish physical performance.
