Label printing guide: materials, rolls and enterprise orders

What is pressure-sensitive label printing?

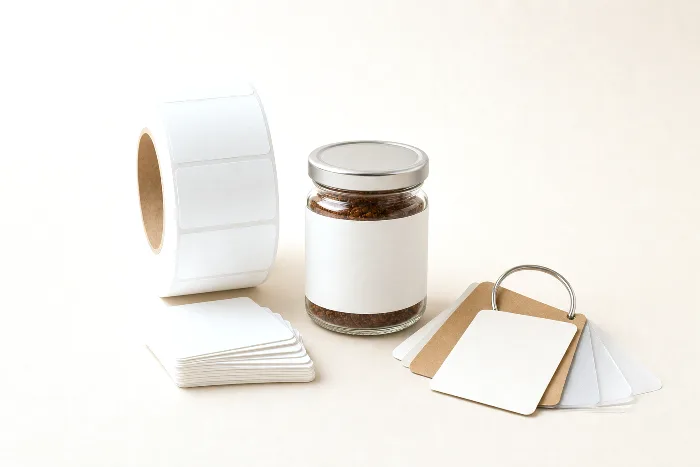

Pressure-sensitive labels are self-adhesive labels supplied on a release liner. A converter prints and finishes the label face, cuts the shape, and prepares rolls or sheets for application. This guide covers that construction for product labels on bottles, jars, cartons and other containers.

The three main components are the facestock that carries the print, the adhesive that bonds to the container, and the release liner that supports the labels until application. Ink, coatings and laminates can add further layers. The complete construction matters: choosing “white film” does not specify its adhesive, liner or resistance to your product's environment.

Start with the pressure-sensitive label construction guide if you need to compare supplier material descriptions. Keep the supplier's material code and technical data with your approved specification.

The specifications a label printer needs

A useful quote request makes confirmed inputs and open decisions visible. Prepare these details before comparing suppliers:

1. Container and use: container material, shape, label panel, application temperature and expected storage or handling conditions.
2. Finished label: width × height with units, shape, corner radius and approved dieline revision.
3. Construction and finish: material code where approved, or the performance requirements for a supplier recommendation.
4. Artwork and versions: files, revision identifiers, colors, white ink or embellishments, and quantity for each SKU.
5. Application: rolls or sheets, applicator or co-packer, and the confirmed roll specification.
6. Commercial plan: releases, delivery locations, needed dates, proof approver and outstanding tests.

The free label SKU schedule and supplier comparison worksheet help purchasing, design and operations work from the same inputs.

Choose a label size for the actual container

Measure the usable label panel, then check a paper template on a physical container. Record the finished label dimensions separately from bleed and the artwork safe area. A bottle's nominal capacity does not determine its label size.

• Round wraps: for a circular, straight-sided body, circumference = π × diameter. Subtract the agreed gap for an open seam, or add the agreed overlap. Confirm the seam design with the applicator operator.
• Front and back: specify each component's dimensions, artwork and quantity. Matching dimensions may allow shared tooling, but the converter must confirm layout and charges.
• Tapered or irregular containers: ask for a drawing and a shape review. A rectangle that looks right on screen may not lie flat on the container.
• Existing dies: ask whether suitable tooling is available and what it costs. An existing die does not automatically mean free tooling or a shorter lead time.

Use the label sizes guide, wine-bottle measurement example and label size calculator for planning. Confirm a production dieline with the printer before approving artwork.

Compare label materials by the conditions they must survive

Describe the application and service conditions before choosing a material. Dry glass at room temperature, a cold bottle with condensation, and a squeezable container need different reviews. These categories are candidates to investigate, not performance guarantees.

Material questions for a supplier review

Candidate	Why consider it?	What to confirm
Coated or textured paper	Print appearance, texture and the desired shelf presentation	Moisture exposure, scuffing, adhesive and any wet-strength requirement
White film, including BOPP	An opaque printed surface for product packaging	Adhesion, conformability, print protection and the specified exposure tests
Clear film	A transparent label appearance	White ink, adhesive clarity, bubbles and appearance on the actual container
Other specialty films	A proposed solution for demanding surfaces or exposure	The specific material code, technical data and application trial results

Do not infer “waterproof,” chemical resistance, outdoor life or clean removal from a material name alone. Wet-strength paper can be a candidate for some wet-bottle applications. Film still needs a suitable adhesive and printed finish. Review the material qualification checklist and agree acceptance criteria with your supplier.

Specify the cut and delivery format separately

Die-cutting describes a cutting method; kiss-cutting describes cut depth. A die can cut through the label face and adhesive while leaving the liner intact. A through-cut piece is cut through the liner as well. Because supplier terminology varies, describe the delivered result instead of relying on “die-cut” alone.

For roll-fed application, specify labels on a continuous liner, the web width and gap, and whether the surrounding waste matrix is removed. For sheets or individual pieces, confirm the sheet layout or backing shape and how the labels will be peeled and applied. See die-cut and kiss-cut label formats for the related terminology.

Approve the roll specification with the applicator operator

Confirm the core inner diameter, maximum roll outside diameter, web width, feed direction, spacing and any roll-weight or splice limits. State whether the printed labels face inward or outward and which artwork edge leads off the roll. Attach an annotated drawing; confirm a numbered unwind position against the supplier's own chart.

A desktop printer, hand dispenser and production applicator may accept different rolls. For outsourced application, ask the co-packer to approve the specification for the named line before ordering. Use the core size and roll diameter guide and unwind direction diagrams together.

Choose finishes for appearance and tested performance

Laminates add a film over the print; varnishes add a coating. Foil and tactile treatments create visual or surface effects. Ask the converter which combinations work with the proposed construction and press, how they affect cost, and whether they change the roll thickness or application behavior.

Use a printed, finished sample for the agreed rub, moisture or product-exposure trial. A screen proof cannot establish scuff resistance or adhesion. If you plan to overprint a lot code or date, test that process on the final finish too. See label finishes and laminates.

Compare digital and flexo label printing on the same job

Compare total delivered cost for the actual SKU mix, not a headline unit price. Print area, material, waste, setup, tooling, finishing, version changes and delivery can all affect the quote. There is no single order quantity at which one print method always wins.

Digital printing can avoid conventional printing plates; flexo quotes commonly include plate and setup costs. The practical choice still depends on the converter's equipment, construction and release plan. Request the same quantities, artwork versions, finish and roll requirements for each option.

• Separate one-time tooling and proofing charges from repeating costs.
• Confirm minimum quantities per SKU and permitted overrun or underrun.
• Include freight, delivery destinations and any charges for split releases.
• Ask what changes on an identical reorder versus a new artwork revision.

The digital versus flexo quote comparison and label cost checklist go deeper. A lower unit price may not be the lower-cost plan if it creates unusable inventory.

Prepare artwork, then approve the right proof

Use the printer's dieline and file requirements. Confirm bleed, safe area, cut-path separation, image resolution, fonts, color references and any white-ink or finish layers. Keep each SKU's file and revision tied to the quantity schedule. Review barcodes and required copy with the responsible owner before approval.

A digital proof checks the proposed artwork and layout. A physical print sample, material test and line trial answer different questions. Record what each approval covers and any conditions still open. Use the dieline and bleed guide and preflight checklist to prepare the files.

Find the guide for your next label decision

• Sizes and container fit — establish finished dimensions.
• Facestocks, adhesives and liners — qualify the construction.
• Roll core, diameter and labels per roll — prepare the applicator handoff.
• Unwind direction — document face orientation and leading edge.
• Finishes — compare appearance and protection.
• Print methods — compare the same multi-SKU job.

An enterprise label program needs a controlled specification

1. Assign an owner and revision. Record the construction, dimensions, artwork and approved supplier references.
2. Schedule every SKU and release. Separate label components, destinations and delivery dates. Record any required production allowance explicitly.
3. Approve the application line. Keep the operator's roll drawing and trial result with the specification.
4. Close the approval gaps. Identify who approves artwork, material performance, print appearance and delivery.
5. Control reorders. Confirm whether the container, artwork, material or applicator has changed before repeating a previous order.

Use the printable label specification sheet and SKU schedule and comparison worksheets. For application-specific planning, see food and beverage labels, cosmetic labels and supplement labels.

Bring your label specification into a packOS quote

Start with your artwork or enter the known label details manually. Artwork helps describe the design; it does not establish the physical adhesive, material performance or applicator limits. Keep unconfirmed inputs visible for review.

Start a label quote, or use the enterprise roll-label buying guide to prepare a multi-SKU program. Share the approved specification and schedule with the supplier before committing production.

Download the label SKU schedule (CSV) to record quantities and revisions, and use the material qualification checklist to document sample approval before ordering.
