Label Sizes for Jars & Bottles: Measuring Guide
Choose label dimensions from the actual container and application. Measure the usable surface, plan the seam, then approve the fit before releasing artwork and quantities by SKU.
THE SHORT ANSWER
Measure the usable labeling area on the exact container SKU. For a straight circular cylinder, circumference equals π × diameter: subtract the agreed gap or add the agreed overlap. Set height within the usable band. Confirm the shape and dimensions with a physical sample; nominal jar or bottle capacity is not a label specification.
Measure the actual container in three steps
- Identify the container. Record its supplier, part number and drawing revision. Keep a sample of the container you will actually use; a different jar sold as the same ounce capacity may have a different shape.
- Mark the usable labeling area. Locate shoulders, base curves, raised seams, texture, ribs and recesses. Measure the width along the surface and the available height. For a circular cylinder, measure circumference with a flexible tape or paper strip, and cross-check diameter at the label band. Do not use the cap diameter.
- Choose the coverage and placement. Mark where front, back, seam and top edge should sit. Agree clearance with the converter and application team. Keep dimensions, units and the measurement method together.
Avery’s measuring guide also starts with the available surface and uses a flexible tape around the container. A measured surface is a starting point for fit review, not proof of adhesion or machine performance.
Calculate wrap width: gap, butt seam or overlap
Use this geometry only for a straight circular cylinder at the label band. Let C be circumference, D diameter, g the intended gap and o the intended overlap, all in the same unit.
- Circumference: C = π × D.

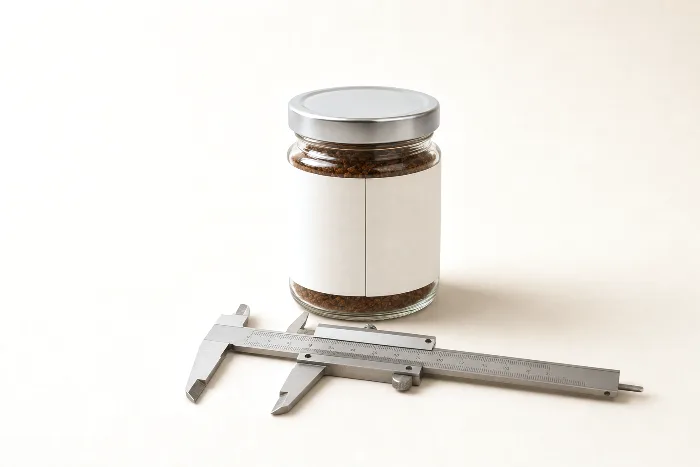

- Gap: label width = C − g. The ends leave visible container between them.
- Butt seam: width = C in the ideal geometry. The ends meet without a gap or overlap; real dimensional and application variation must still be accommodated.
- Overlap: label width = C + o. One end covers the other. Agree which edge is covered and qualify adhesion to the actual printed or finished label face.
There is no universal gap or overlap allowance. An overlap is not automatically more durable. Container variation, label construction and the application process belong in the approved specification.
Worked example: a 2.5 inch diameter jar
Suppose a cylindrical label band measures 2.5 in in diameter and 3 in high. The following 0.125 in allowances are hypothetical inputs, not recommended production tolerances.
- C = π × 2.5 = 7.8539816… in.
- With a 0.125 in gap: width = C − 0.125 = 7.729 in, rounded.
- With a 0.125 in overlap: width = C + 0.125 = 7.979 in, rounded.
- With 0.125 in clearance at both top and bottom: height = 3 − 0.125 − 0.125 = 2.75 in.
Use full precision during calculation and round only for the agreed drawing. One inch is 25.4 mm, so 0.125 in is 3.175 mm. These dimensions describe the finished label; artwork bleed and safe areas are separate.
Choose wrap, front-and-back or front-only coverage
A wrap uses most of the circumference. Front-and-back labels leave two separation zones and need a defined orientation to each other. A front-only label covers the selected presentation panel. Choose the layout around required copy, appearance, container geometry and the application method.
On a curved bottle, measure the intended panel along the surface, rather than taking a flat width across a photograph. On a flat-sided container, keep the approved clearance from corners and transitions. A half- or third-circumference estimate cannot establish the usable panel on every shape.
Cut a paper outline at the proposed finished size and place it on the real container. Check visible coverage and copy placement from the intended viewing direction. This checks geometry only; it does not qualify the production material.
What to measure on jars, bottles, tins and lids
A capacity such as “4 oz jar” or “1 oz bottle” does not identify a unique labeling surface. Replace a generic size chart with the exact container’s dimensions and drawing. Use this checklist to decide what needs measuring.
| Container or surface | Record | Check before approval |
|---|---|---|
| Straight round jar or bottle | Circumference or diameter at the label band; usable height | Seam choice, body variation and clearance from shoulder/base |
| Flat-sided jar, tin or carton | Usable face width and height | Corner transitions, recesses, texture and raised features |
| Lid or cap top | Usable flat area and proposed label shape | Raised rim, embossing, curvature and opening function |
| Tapered bottle, tub or cup | Upper/lower circumference at the proposed label boundaries; their spacing | Supplier-defined curved template and actual fit |
| Small-radius vial or tube | Label-band circumference, height and seam layout | Material/adhesive suitability and edge lifting on samples |
Keep front, back and lid components as separate specification rows. The label size and format guide covers broader dimension choices; this page focuses on the container that must carry them.
Qualify taper, curvature and small-radius fit
If circumference changes between the top and bottom of the proposed label band, a rectangular full wrap may not fit. A tapered shape can need an arc-shaped dieline or reduced coverage. Compound curves and shoulders need their own review rather than a single-diameter calculation.
OnlineLabels’ tapered-template tool uses upper and lower circumferences with height and coverage inputs, then recommends a printed cutout test. Confirm the receiving supplier’s measurement convention and drawing; do not infer a production template from this article.
On a tight radius, assess the complete label construction and adhesive on the intended surface. Do not select film thickness or overlap from a universal diameter threshold. Check for wrinkles, lifting and seam behavior after application and under the intended storage and use conditions. Use the label material qualification checklist to record what was actually tested.
Use the calculator as a dimension estimate
The label size calculator accepts diameter, height, coverage style, seam adjustment and top/bottom clearances. For its full-wrap mode, a positive seam value adds overlap and a negative value subtracts a gap. Its front/back and front-only modes use simplified circumference-based estimates.
Use those outputs to prepare a candidate dimension, then check the real container. The calculator does not establish taper fit, adhesive performance, machine tolerances, required copy space or an approved production template. Its default values are inputs to review, not supplier requirements.
Once the finished size and shape are approved, prepare the file using the label dieline, bleed and safe-area guide. Keep container clearance, artwork safety and barcode quiet zones as distinct requirements.
Check category-specific conditions
- Wine and spirits: confirm the bottle drawing and usable panel; review required copy with the responsible owner. The wine bottle label sizing guide covers that container family.
- Candles: record where the label will sit and the intended exposure conditions. A paper fit test cannot establish performance during use; review the full construction and product requirements with the supplier.
- Refrigerated or wet products: qualify the material and adhesive for both application conditions and later storage/use. Do not assume a dimensionally correct label will stay attached.
- Embossed or shouldered jars: map the smooth labeling area on the actual item. Additional copy may require a separately approved component, rather than extending a wrap into an unsuitable surface.
Bring an approved container specification into your quote
Enter known label details manually or upload artwork to start a label quote. Compare the detected dimensions and selected specification with the approved container drawing. Review assumptions, materials, quantities, tooling and delivery terms before confirming.
Multi-SKU container-fit approval checklist
- Container supplier, part number, drawing revision and representative sample reference.
- Component and artwork SKU, finished width × height, units, shape and dieline revision.
- Placement, seam type and allowance, top/bottom clearance and front/back orientation.
- Material, adhesive and finish; application method and relevant storage/use conditions.
- Physical fit result, application trial reference, unresolved questions and approval owner/date.
- Quantity by SKU, release schedule and change-control reference for repeat orders.
Use the label SKU schedule and quote-comparison worksheets to keep the approved configuration connected to quantities and supplier responses. For machine-applied rolls, also record unwind direction and core and roll limits.
Print a candidate outline at actual size, verify it with a ruler and fit it to a sample. Then qualify production labels on representative containers under the agreed conditions. A container, material, artwork or applicator change should trigger review of the affected approval.
Frequently asked questions
What size label do I need for a jar or bottle?
Measure the usable labeling area on the exact container. For a straight circular cylinder, calculate circumference from diameter, then subtract the agreed gap or add the overlap. Set height within the usable band and confirm fit on a physical sample.
How do I calculate label width for a full wrap?
For a straight circular cylinder, circumference C equals π × diameter. A gap layout is C minus the gap; an overlap layout is C plus the overlap. Use the allowance agreed for the container, label construction and application process.
Is a gap the same as a butt seam?
No. A gap leaves visible container between the ends. A butt seam has ends that meet without overlap in the ideal geometry. Real dimensional and application variation still needs an agreed allowance and physical review.
Is there a standard label size for jars and bottles?
Nominal container capacity does not determine label size. Two jars with the same ounce capacity may have different bodies and usable surfaces. Use the actual part number, drawing and measurements.
What is a mason jar label size?
There is no single size for every mason jar. Measure the usable body or lid on the specific jar, including raised features and curved edges, and approve the proposed outline on a sample.
Should I use a full wrap or a front-and-back label?
Choose around the copy, appearance, usable surface and application method. A wrap needs a defined seam; front-and-back labels need placement and spacing for two components. Validate the selected layout on the actual container.
Can a rectangular label fit a tapered bottle?
A full rectangular wrap may not fit when circumference changes over the label height. Measure at both label boundaries and ask the supplier to confirm the shape and template. Test the proposed outline on the real container.
Does a paper fit test approve the production label?
No. It helps check dimensions, coverage and placement. The actual label material, adhesive, finish and application process still need qualification under the agreed conditions.
